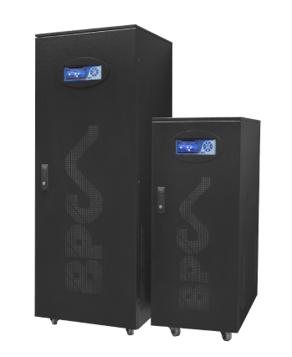

BPC Energy’s Frequency Converters are used for converting either 50Hz, 60Hz or 400Hz, utility line power to 50Hz, 60Hz or 400Hz power to run your mission critical equipment. All BPC Energy solid state Frequency Converters use IGBT technology and are designed for continuous operation.
Key Features:
The PowerPro FC range of products offers very fexible technology which can be designed for frequency conversion 50 Hz, 60 Hz or 400 Hz solutions and/or voltage changes enabling us to meet your industrial specifcation and requirements.
All PowerPro FC and VC ranges have an enviable reputation for consistent reliability, ease of installation and maintenance, making them ideal for intelligent control equipment, oil, gas and petrochemical industry, hospital and medical, airport ground support, defence, avionics and navigation aid applications.
| INPUT | |
| Voltage | 220 / 230 – single phase – 380 / 400V 3 phase ± 15% (other voltages available) |
| Frequency | 50Hz / 60Hz / 400Hz (± 5%) |
| OUTPUT | |
| Power (kVA) | 5kVA to 300kVA 50Hz / 60Hz / 400Hz |
| Voltage | 120/208V 60/400V – 230/400V 50/60Hz (other voltage ranges available) |
| Voltage Regulation | +1% (balance load) +2% (unbalanced load) |
| Frequency | 50 Hz / 60 Hz / 400 Hz |
| Frequency Stability | +0,2 Hz (free running) |
| Efficiency | 85% - 90% |
| Protections | Short circuit protection, overload protection, output voltage out of tolerance protection |
| Voltage Protection | AC voltage low and high protection |
| Output Waveform | Sinusoidal (THD <3% for linear load) |
| Output Power Factor | 0.7 (single phase) – 0.8 (three phase) |
